7.3 Zigzag Traversal (medium)

Given the root of a binary tree, return the zigzag level order traversal of its nodes' values. (i.e., from left to right, then right to left for the next level and alternate between).

Example 1:

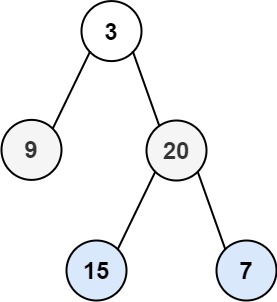

Input: root = [3,9,20,null,null,15,7]
Output: [[3],[20,9],[15,7]]

Example 2:

Input: root = [1]
Output: [[1]]

Example 3:

Input: root = []
Output: []

Constraints:

• The number of nodes in the tree is in the range [0, 2000].

• -100 <= Node.val <= 100

import java.util.*;

class TreeNode {
  int val;
  TreeNode left;
  TreeNode right;

  TreeNode(int x) {
    val = x;
  }
};

class Main {
  public static List<List<Integer>> traverse(TreeNode root) {
    List<List<Integer>> result = new ArrayList<List<Integer>>();
    if(root == null) return result;
    Queue<TreeNode> queue = new LinkedList<>();
    queue.offer(root);
    boolean leftToRight = true;
    // int level = 0;
    while(!queue.isEmpty()) {
      int levelSize = queue.size();
      List<Integer> currLevel = new ArrayList<>();
      for(int i = 0; i < levelSize; i++) {
        TreeNode currNode = queue.poll();
        if(leftToRight)
          currLevel.add(currNode.val);
        else
          currLevel.add(0, currNode.val);

        if(currNode.left != null) queue.offer(currNode.left);
        if(currNode.right != null) queue.offer(currNode.right);
      }
      result.add(currLevel);
      leftToRight = !leftToRight;
    }
    return result;
  }

  public static void main(String[] args) {
    TreeNode root = new TreeNode(12);
    root.left = new TreeNode(7);
    root.right = new TreeNode(1);
    root.left.left = new TreeNode(9);
    root.right.left = new TreeNode(10);
    root.right.right = new TreeNode(5);
    root.right.left.left = new TreeNode(20);
    root.right.left.right = new TreeNode(17);
    List<List<Integer>> result = Main.traverse(root);
    System.out.println("Zigzag traversal: " + result);
  }
}

Time complexity #

The time complexity of the above algorithm is O(N), where ‘N’ is the total number of nodes in the tree. This is due to the fact that we traverse each node once.

Space complexity #

The space complexity of the above algorithm will be O(N) as we need to return a list containing the level order traversal. We will also need O(N) space for the queue. Since we can have a maximum of N/2 nodes at any level (this could happen only at the lowest level), therefore we will need O(N) space to store them in the queue.
